Metro CBNTC-INLAY02 Economy Vinyl ESD Tray Inlay
Manufacturer Part Number: CBNTC-INLAY02 | Brand: Metro
Key Features and Benefits
- Static Dissipative Protection: Protects sensitive electronic components from electrostatic discharge.
- Cushioned Surface: Soft vinyl material provides a gentle surface for PCB transport.
- Durable Construction: Made from high-quality vinyl for long-lasting performance.
- Easy to Clean: The smooth surface is easy to wipe down and maintain.
- Cost-Effective: An economical solution for ESD protection.
Technical Specifications
- Material: Economy Single-Layer Vinyl
- Color: Blue
- Dimensions: 16.125″W x 24″L x 0.125″H (Inside Dimensions: 24 x 16.12 x 0.12in)
- Weight: 1.5 lbs
- Surface Resistance: RTT: 1.2 x 10^7 to 9 x 10^7, RTG: 1.4 x 10^7 to 2 x 10^7
- Standards Met: ESD S4.1-1997, ANSI/EOS/ESD-S11.11-
Common Uses
- PCB Transport: Safely move PCBs between workstations or storage areas.
- Electronics Manufacturing: Protect components during assembly and handling.
- Repair Facilities: Use as a protective surface when working on electronic devices.
- Cleanrooms: Suitable for use in controlled environments where ESD is a concern.
Frequently Asked Questions
Q: Is this inlay suitable for soldering applications?
A: No, this inlay is not recommended for use in soldering and assembly applications.
Q: What is the surface resistance of this inlay?
A: The surface resistance is RTT: 1.2 x 10^7 to 9 x 10^7, RTG: 1.4 x 10^7 to 2 x 10^7.
Certifications
- ESD S4.1-1997
- ANSI/EOS/ESD-S11.11-

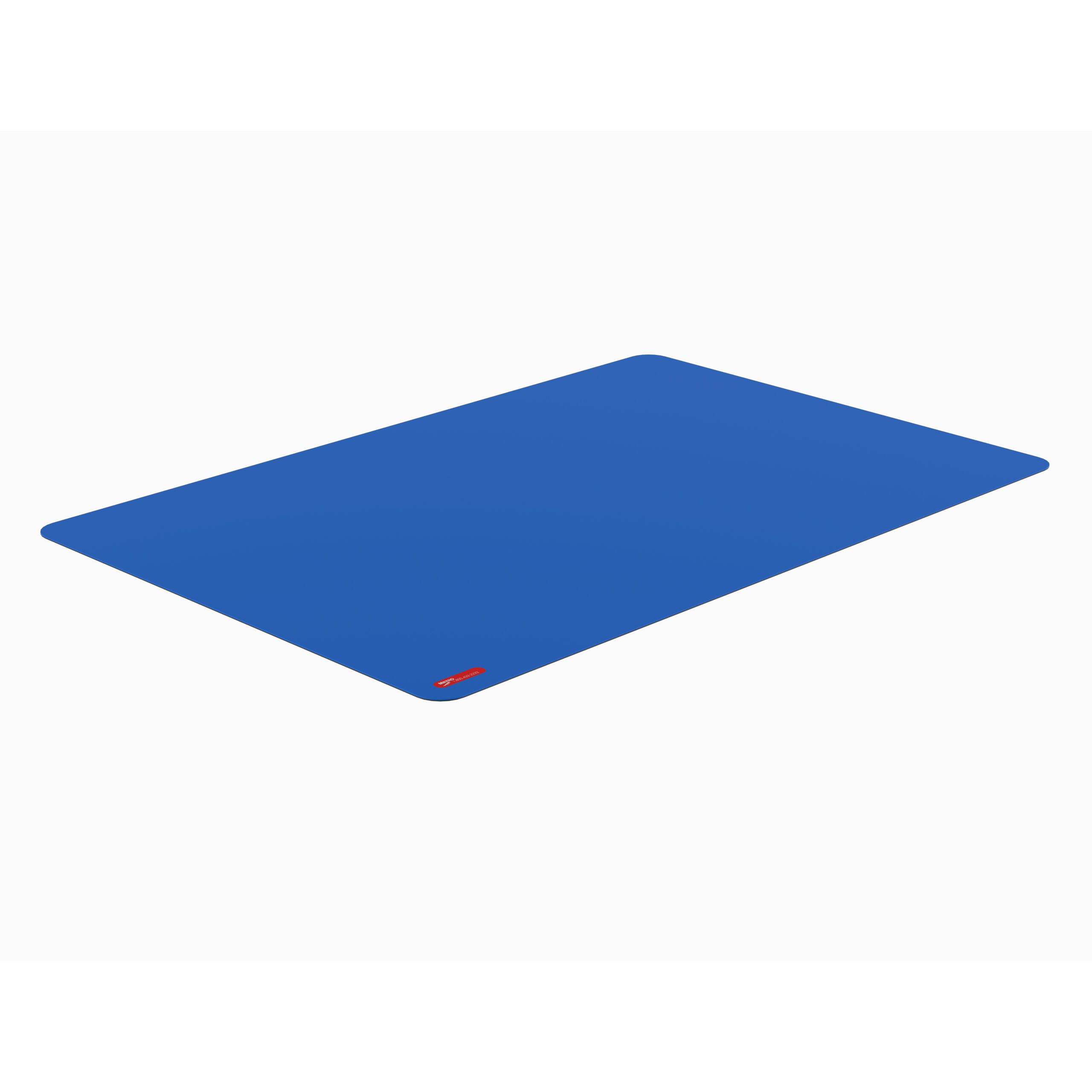

See product image above for a visual representation.
Maximize your productivity and minimize PCB handling damage with the Metro CBNTC-INLAY02 Economy Vinyl ESD Tray Inlay. Contact us today for more information!
