Jaken 215-MUH36144A Pallet Rack Upright 36×144 Seismic FP
215-MUH36144A Jaken pallet rack upright — bolt-together seismic upright engineered for industrial storage and warehouse racking. Available in Regular Duty and Heavy Duty configurations to suit light to very heavy pallet loads.
Features & Benefits

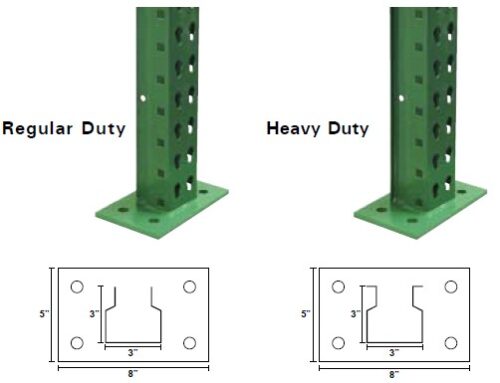

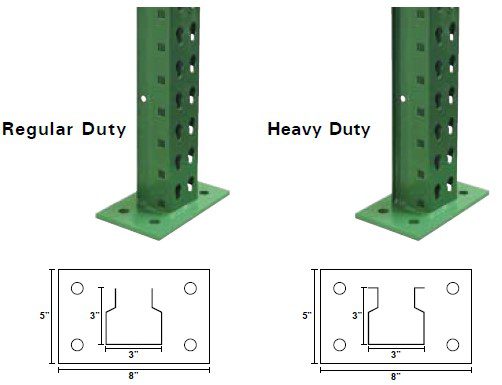

3″ x 3″ structural columns with 5″ x 8″ seismic base plates provide stable, code-aware anchoring. Regular Duty uprights use 16-gauge steel (approx. 16,100 lb capacity per upright under a 36″ maximum shelf spacing); Heavy Duty uprights use 14-gauge steel (approx. 23,300 lb capacity per upright under the same spacing). Bolt-together construction reduces lifecycle cost by allowing individual component replacement instead of full welded upright replacement. Step load beams use removable safety clips for simple maintenance. Designed for forklift use, powered lifts or heavy hand stacking. Ideal for modular starter and add-on configurations; starter/add-on kits commonly ship with two shelf levels.
Specifications
Nominal dimensions: 36″ x 144″ upright height; columns: 3″ x 3″; seismic base plates: 5″ x 8″. Material: 16-gauge (regular) or 14-gauge (heavy) steel. Load ratings: ~16,100 lb (regular) and ~23,300 lb (heavy) per upright at 36″ shelf spacing. Assembly: bolt-together; compatible with standard pallet rack beams, wire mesh decking and accessories. Finish: durable industrial coating (typical powder coat or baked enamel depending on supplier).
Applications
Purpose-built for warehouses, distribution centers, manufacturing storage, retail stockrooms and MRO areas requiring heavy-duty shelving and steel storage racks. Suited to industrial shelving, warehouse racking, heavy-duty shelving and boltless-style modular systems where quick repairability and seismic anchoring are required.
