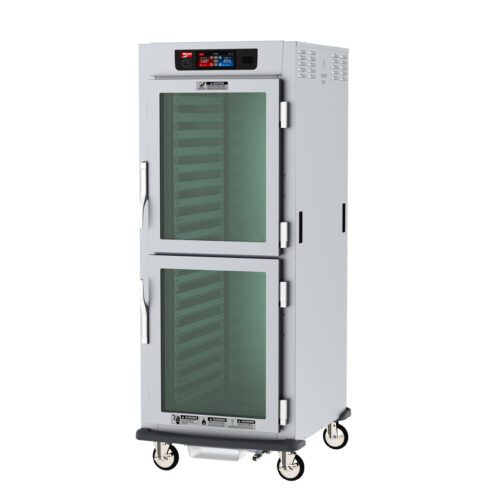

Metro C599-SDC-LPDS C5 9 Series Controlled Humidity Pass-Thru Heated Holding and Proofing Cabinet
Manufacturer Part Number: C599-SDC-LPDS | Brand: Metro
The Metro C599-SDC-LPDS is a state-of-the-art C5 9 Series Controlled Humidity Pass-Thru Heated Holding and Proofing Cabinet, designed to provide precise temperature and humidity control for optimal food quality. This full-height cabinet features Dutch clear doors on one side and Dutch solid doors on the other, along with lip load aluminum slides for easy loading and unloading. Operating at 120V, 60Hz, and 2000W, this unit is a reliable and efficient solution for any commercial kitchen.
Key Features
- Controlled Humidity: Maintain precise humidity levels to prevent food from drying out or becoming soggy.
- Pass-Thru Design: Allows for easy loading from one side and unloading from the other, improving kitchen efficiency.
- Dutch Doors: Offers flexibility with clear doors on one side for visibility and solid doors on the other for better insulation.
- Touch-Screen Display: A 6.8â high-resolution touch-screen provides intuitive control over temperature and humidity settings.
- Programmable Timers: Set timers for different menu items to ensure consistent food quality.
- Stainless Steel Construction: Ensures durability, corrosion resistance, and easy cleaning.
- Fiberglass Insulation: 2.5â thick, high-density fiberglass insulation minimizes temperature loss.
- Real-Time Monitoring: Constantly displays temperature and relative humidity levels for valuable feedback.
- Safety Prioritization: Temperature is always prioritized over humidity to ensure food safety.
- Mobile Design: Equipped with 5-inch casters for easy mobility and placement.
Benefits
- Improved Food Quality: Precise control over temperature and humidity ensures that food remains fresh and flavorful.
- Increased Efficiency: Pass-thru design streamlines kitchen workflow, reducing congestion and improving productivity.
- Energy Savings: High-density insulation minimizes temperature loss, reducing energy consumption.
- Easy to Use: Intuitive touch-screen controls and programmable timers make operation simple and straightforward.
- Durable and Reliable: Stainless steel construction and robust components ensure long-lasting performance.
Technical Specifications
- Model: C599-SDC-LPDS
- Dimensions: 30″ W x 36 3/8″ D x 74 3/4″ H
- Voltage: 120V
- Frequency: 60Hz
- Wattage: 2000W
- Amperage: 16A
- Plug: NEMA 5-20P
- Pan Capacity: 34 (18″ x 26″) pans
- Temperature Range: 90°F to 200°F
- Material: Stainless Steel
- Insulation: 2.5″ High-Density Fiberglass
- Door Type: Dutch (Clear/Solid)
- Slide Type: Lip Load Aluminum
- Mobility: 5″ Casters
- Certifications: cULus, NSF
Common Uses
- Restaurants: Ideal for holding prepared foods at optimal temperatures until serving.
- Catering Services: Perfect for transporting and holding food for off-site events.
- Bakeries: Can be used for proofing dough and holding baked goods.
- Institutional Food Operations: Suitable for use in hospitals, schools, and other large-scale food service environments.
FAQs
- What is the temperature range of this cabinet?
The temperature can be adjusted between 90°F and 200°F. - Does this unit require special wiring?
No, it operates on a standard 120V power supply with a NEMA 5-20P plug. - Is this cabinet mobile?
Yes, it is equipped with 5-inch casters for easy mobility. - What type of pans does it accommodate?
It can hold up to 34 standard 18″ x 26″ pans.
Specifications
- Manufacturer: Metro
- Series: C5 9 Series
- Product Type: Food Warming Equipment
- Application: Heat & Humidity
- Construction: Stainless Steel
- Door Design: Dutch
- Door Type: Solid/Glass
- Load Type: Pass Thru
- Size: Full Height
- Special Features: All Stainless Exterior
- Warranty: 1-year Against Manufacturing Defects
- Weight: 435 lbs
- Color: Silver
